HexTrack
Technical Documentation
Table of contents
Renders

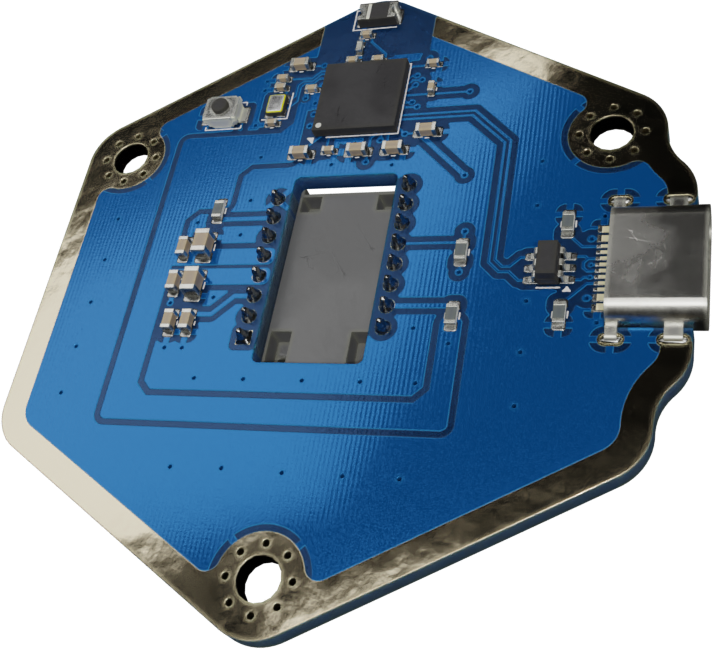

Render Angled

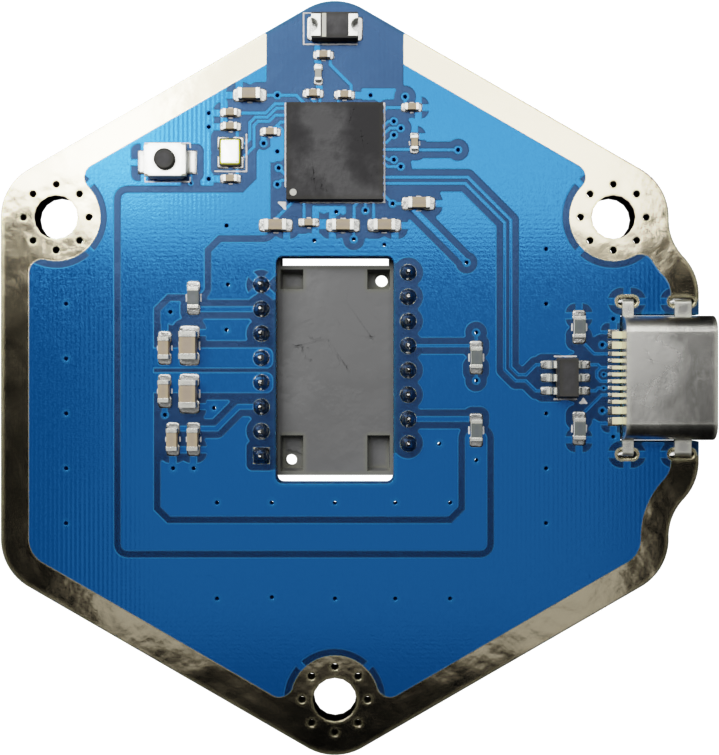

Render Top

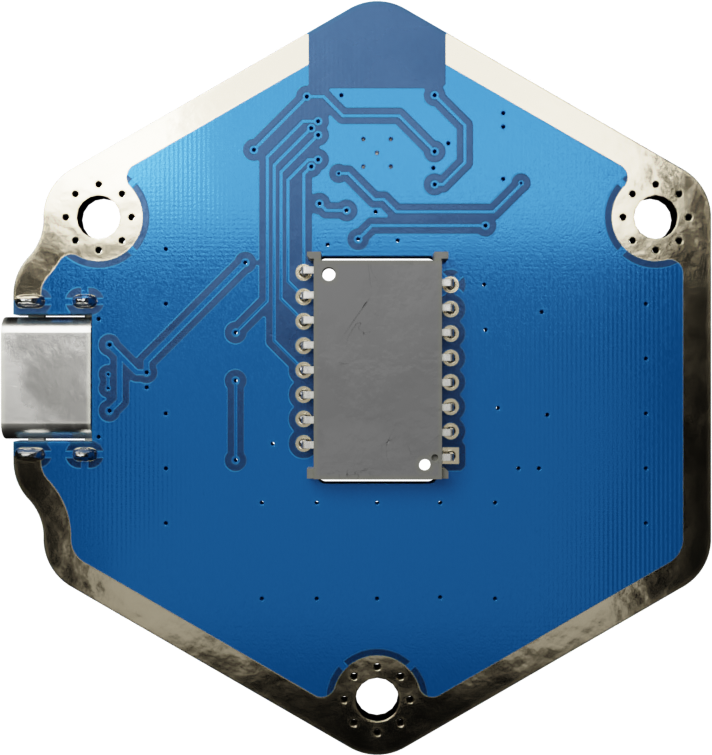

Render Bottom
Schematic
Monochrome
Light
Assembly
Assembly document
Fabrication document
Gerber viewer on tracespace.io
Interactive BOM
Check component locations by hovering over a specific component. The visual elements might not be precise enough for pcb review but can be very useful since it’s possible to pan and zoom.
Downloads
JLCPCB
3D Step
Report
ERC
- Errors: 0
- Warnings: 0
- Link: HTML Report
DRC
- Errors: 0
- Warnings: 1
- Link: HTML Report
PCB
Board size: 50.81x54.89 mm (2.0x2.16 inches)
- This is the size of the rectangle that contains the board
- Thickness: 1.6 mm (63 mils)
- Material: FR4
- Finish: ENIG
- Layers: 2
- Copper thickness: 35 µm
Solder mask: TOP / BOTTOM
- Color: Blue
Silk screen: TOP / BOTTOM
- Color: White
Special features:
- Edge connector: yes, bevelled
Stackup:
| Name | Type | Color | Thickness [µm] | Material | Er | Loss tan |
|---|---|---|---|---|---|---|
| F.SilkS | Top Silk Screen | White | ||||
| F.Paste | Top Solder Paste | |||||
| F.Mask | Top Solder Mask | Blue | 10 | |||
| F.Cu | copper | 35 | ||||
| dielectric 1 | core | FR4 natural | 1510 | FR4 | 4.5 | 0.020 |
| B.Cu | copper | 35 | ||||
| B.Mask | Bottom Solder Mask | Blue | 10 | |||
| B.Paste | Bottom Solder Paste | |||||
| B.SilkS | Bottom Silk Screen | White |
Important sizes
Clearance: 0.1 mm (4 mils)
Track width: 0.2 mm (8 mils)
- By design rules: 0.0 mm (0 mils)
Drill: 0.3 mm (12 mils)
- Vias: 0.3 mm (12 mils) [Design: 0.25 mm (10 mils)]
- Pads: 0.6 mm (24 mils)
- The above values are real drill sizes, they add 0.1 mm (4 mils) to plated holes (PTH)
Via: 0.4/0.2 mm (16/8 mils)
- By design rules: 0.3/0.15 mm (12/6 mils)
- Micro via: yes [0.2/0.1 mm (8/4 mils)]
- Buried/blind via: yes
- Total: 70 (thru: 70 buried/blind: 0 micro: 0)
Outer Annular Ring: 0.05 mm (2 mils)
- By design rules: 0.1 mm (4 mils)
Eurocircuits class: 10D
- Using min drill 0.3 mm for an OAR of 0.05 mm
General stats
Components count: (SMD/THT)
- Top: 32/1 (SMD + THT)
- Bottom: 0/1 (THT)
Defined tracks:
Used tracks:
- 0.2 mm (8 mils) (162) defined: no
- 0.4 mm (16 mils) (36) defined: no
Defined vias:
Used vias:
- 0.4/0.2 mm (16/8 mils) (Count: 4, Aspect: 4.0 A) defined: no
- 0.6/0.3 mm (24/12 mils) (Count: 66, Aspect: 2.7 A) defined: no
Holes (excluding vias):
- 0.5 mm (20 mils) (24)
- 0.7 mm (28 mils) (16)
- 3.2 mm (126 mils) (3)
Oval holes:
- 0.6x1.4 mm (24x55 mils) (2)
- 0.6x1.8 mm (24x71 mils) (2)
Drill tools (including vias and computing adjusts and rounding):
- 0.3 mm (12 mils) (4)
- 0.4 mm (16 mils) (66)
- 0.6 mm (24 mils) (24)
- 0.7 mm (28 mils) (4)
- 0.8 mm (31 mils) (16)
- 3.3 mm (130 mils) (3)
Solder paste stats:
Using a paste with 87.75 % alloy, that has an specific gravity for the alloy of 7.4 g/cm³ and 1.0 g/cm³ for the flux. This paste has an specific gravity of 4.15 g/cm³.
The stencil thickness is 0.12 mm.
| Side | Pads with paste | Area [mm²] | Paste [g] |
|---|---|---|---|
| Total | 161 | 74.71 | 0.37 |
Note: this is just an approximation to the theoretical value. Margins of the solder mask and waste aren’t computed.
